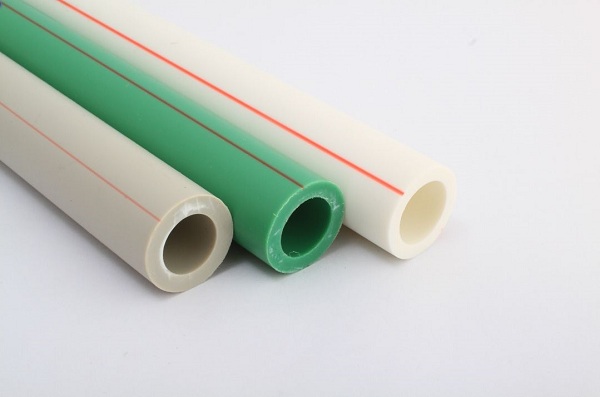

PP-R Pipe.also called random copolymerized polypropylene (type Ⅲ)pipe,is a new generation of environment-friendly construction material developed in the 1990s.Besides plastic pipes' merits such as lightness.corrosion resistance.anti-deposition and long service life.PP-R pipe also enjoy some other advantages,like hygienicness,heatresistance and longer service life.Meanwhile,its coefficient of heat conductivity is quite low and it is good at heat preservation and energy conservation.Because of the technique of thermosol binding,it is convenient to be installed and reliable in joints.Also,the material can be recycled.Therefore,it is worthy of the name environment-friendly construction material. Compared with aluminum multiunit pipe,PP-R pipe can be made into tubular products with larger calibers,with the largest reaching more than 163mms in caliber. PP-R pipes and pipe fittings are widely used in such areas as delivery of drinking water,production and delivery system of purified water and drinks,transportation of chemical fluids,heating pipes,circulation system of hot water,pipes in agriculture,planting in gardens,parks and ranches,etc.

Specification and Size:

PP-R PIPE(COLD WATER)		PP-R PIPE(HOT WATER)
PN1.25MPa		PN2.0MPa
Φ20X1.9 Φ25X2.3 Φ32X3.0 Φ40X3.7 Φ50X4.6	Φ63X5.8 Φ75X6.9 Φ90X8.2 Φ110X10.3 Φ160X14.6	Φ20X2.8 Φ25X3.5 Φ25X3.5 Φ40X5.5 Φ50X6.9	Φ63X8.7 Φ75X10.1 Φ90X12.3 Φ110X15.1 Φ160X21.8
PN1.6MPa		PN2.5MPa
Φ20X2.3 Φ25X2.8 Φ32X3.6 Φ40X4.5 Φ50X5.6	Φ63X7.1 Φ75X8.4 Φ90X10.1 Φ110X12.2 Φ160X17.8	Φ20X3.4 Φ25X4.2 Φ32X5.4 Φ40X6.7 Φ50X8.4	Φ63X10.5 Φ75X12.3 Φ90X15.0 Φ110X18.3
