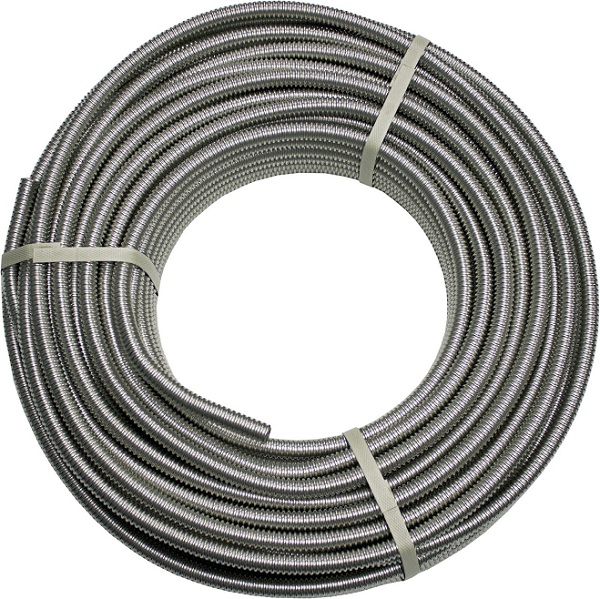

Stainless Steel Corrugated Hose are made by high grade steel-belt, its hose flexible, more efficient heat exchange, corrosive and scale resistant for long lasting use. It is a good solution for water distribution, boilers, water heaters.

Tech Data:

1.Operating Temperature Range: -40℃ to 400℃；

2.Thermal Conductivity: 10~30W/（m＆#8226;℃）Under the temperature 600℃;

3.Thermal Expansivity:(0~100℃) 17.3×10-6/℃&(100~800℃) 19.0×10-6/℃;

4.Surface in m2 per one meter: SUS304-1/2'',0.0614M2/M;SUS304-3/4'', 0.0752M2/M; SUS304-1'', 0.11M2/M; SUS304-5/4'', 0.125M2/M.

5.Minimum bending diameter: SUS304-1/2'',20MM; SUS304-3/4'', 25MM; SUS304-1'', 30MM; SUS304-5/4'', 40MM

6.Working Pressure: 0.6Mpa(No More Than 1.2Mpa)

7.Bursting Strength: 5Mpa.

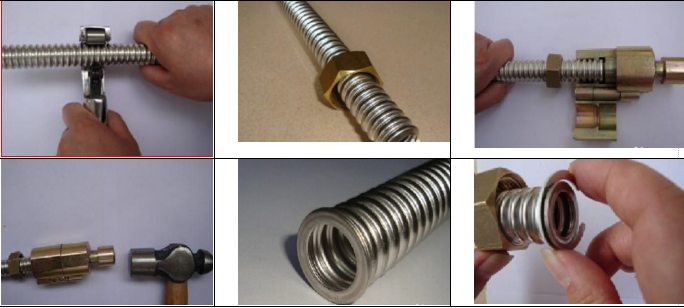

Installation:

Model:

Size

Material Thickness

Material

Length

DN12mmIDx16mmOD-1/2’’

0.15-0.4mm

SUS304/316L

10m、15m、20m、25m、30m…

DN16mmIDx20mmOD-3/4’’

0.15-0.4mm

SUS304/316L

10m、15m、20m、25m、30m…

DN20mmIDx26mmOD-1’’

0.15-0.4mm

SUS304/316L

10m、15m、20m、25m、30m…

DN25mmIDx32mmOD-5/4’’

0.15-0.4mm

SUS304/316L

10m、15m、20m、25m、30m…

The length is per customer's requirement
