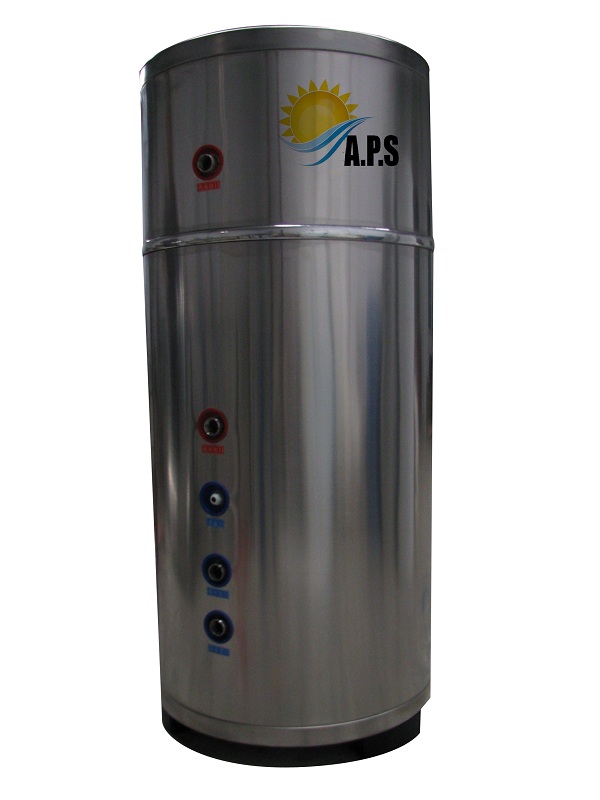

Pressure Storage Tank is used for Split Pressure Solar Water Heater, Pressure Solar Heating Project, and Heat Pump Heating Project to keep hot water warm.

Tech Data:

1. Outer Tank, Color Steel or Stainless Steel

2. Inner Tank, SUS304-2B or Enamel Tank.

3. Electric Assistant Heating: 1.5-2.5KW and Mg Rod

4. est pressure: 15bar; work pressure: 6bar; Tank Capacity from 100L-1500L.

5. Tank Capacity, Coil material, Diameter and Length can be modified according to the customer’ requirement.

Model：

A. Pressure Storage Tank for Split Solar Water Heater Stainless Steel Coil Series.

Series	Dimension For Tank		Inner	Coil: SS304
Model	Inner Dia	Outer Dia	Tank	Dia @ Length
AP-PSC200L	450MM	550MM	1.5MM	12MM&15/15M
AP-PSC300L	480MM	580MM	1.5MM	12MM&15/15M
AP-PSC500L	580MM	700MM	2.0MM	12MM&20/25M
AP-PSC1000L	800MM	1000MM	2.5MM	16MM&20/25M

B.Enamel Pressure Storage Tank for Split Solar Water Heater Two Enamel-Coil Series.

Series	Dimension For Tank		Inner	Coil: Enamel
Model	Inner Dia	Outer Dia	Tank	Dia @ Length
AP-PEC200L	440MM	540MM	2.0MM	32MM&10/10M
AP-PEC300L	540MM	650MM	2.0MM	32MM&14/14M
AP-PEC400L	600MM	700MM	2.5MM	32MM&16/16M
AP-PEC500L	600MM	700MM	2.5MM	32MM&16/16M
