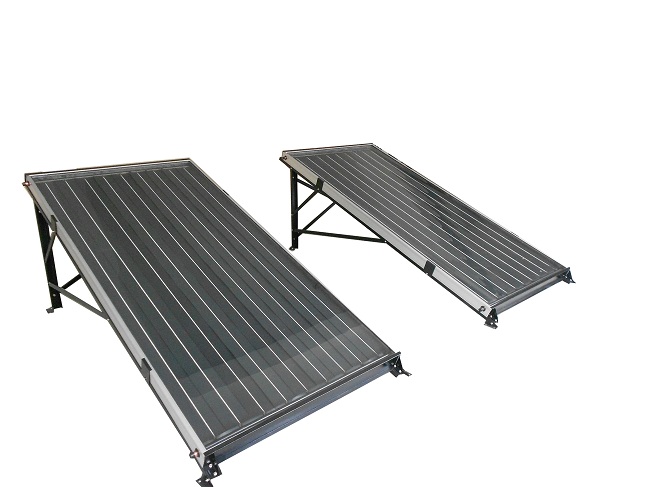

Flat Solar Collector can be used in the solar heating project both closed and open circulation systems. Also, it also can be used in many different solar system.
Tech Data:
|
Data Term
|
FPC-AL-BC-80MM
|
FPC-CU-BC-80M
|
|
LXWXH (MM)
|
Collector Size: 2000MMX1000MMX80MM Carton Size: 2020MMX1100MMX95MM
|
|
Gross; Aperture; Weight
|
Gross Area: 2.00㎡ Aperture Area: 1.85㎡ Weight: 38.00KGS
|
|
Cover
|
Material, Low-iron Pattered Tempered Glass; Thickness, 3.2MM; Transmittance, 91%; Quantities, 1PCS.
|
|
Absorber
|
Aluminum Sheet
|
Copper Sheet
|
|
Surface Treatment
|
Electroplating the Black Chrome
|
|
Absorptivity
|
0.93～0.97
|
0.93～0.97
|
|
Emissivity
|
0.07～0.14
|
0.07～0.14
|
|
Solar Fins
|
140MMX0.4MM
|
950MMX0.4MM
|
|
Header Tuber
|
Material, Copper, TP2; Diameter,22MM; Thickness, 0.6MM; Length, 1060MM; Quantities, 2PCS.
|
|
Riser Tuber
|
Material, Copper, TP2; Diameter,10MM; Thickness, 0.5MM; Length, 1888MM; Quantities,8PCS;
|
|
Construction
|
Fin & Tubes(Ultrasonic Welding); Working Pressure,0.6Mpa; Conductivity (W/mK):<= 0.048W/m.K under test temperature 70℃
|
|
Insulation
|
Material, Fibre Glass; Density, Density ,16KG/CBM Back: 30MM /Side:35MM
|
|
Frame & Back Plate
|
6063 Aluminum Alloy; Sliver White; 0.85MM Thickness; Sealing Tape,EPDM; Galvanized Steel Back Plate; 0.3MM Thickness
|
Tech Data:
|
Data Term
|
FPC-AL-CB-80M
|
FPC-AL-GB-80M
|
|
LXWXH (MM)
|
Collector Size: 2000MMX1000MMX80MM Carton Size: 2020MMX1100MMX95MM
|
|
Gross; Aperture; Weight
|
Gross Area: 2.00㎡ Aperture Area: 1.85㎡ Weight: 38.00KGS
|
|
Cover
|
Material, Low-iron Pattered Tempered Glass; Thickness, 3.2MM; Transmittance, 91%; Quantities, 1PCS.
|
|
Absorber
|
Aluminum Sheet
|
Aluminum Sheet
|
|
Surface Treatment
|
Chinese Blue Film
|
Germany Import Blue Film
|
|
Absorptivity
|
0.93～0.97
|
0.95～0.98
|
|
Emissivity
|
0.07～0.14
|
0.03～0.06
|
|
Solar Fins
|
140MMX0.4MM
|
950MMX0.4MM
|
|
Header Tuber
|
Material, Copper, TP2; Diameter,22MM; Thickness, 0.6MM; Length, 1060MM; Quantities, 2PCS.
|
|
Riser Tuber
|
Material, Copper, TP2; Diameter,10MM; Thickness, 0.5MM; Length, 1888MM; Quantities,8PCS;
|
|
Construction
|
Fin & Tubes(Ultrasonic Welding); Working Pressure,0.6Mpa; Conductivity (W/mK):<= 0.048W/m.K under test temperature 70℃
|
|
Insulation
|
Material, Fibre Glass; Density, Density ,16KG/CBM Back: 30MM /Side:35MM
|
|
Frame & Back Plate
|
6063 Aluminum Alloy; Sliver White; 0.85MM Thickness; Sealing Tape,EPDM; Galvanized Steel Back Plate; 0.3MM Thickness
|
|
