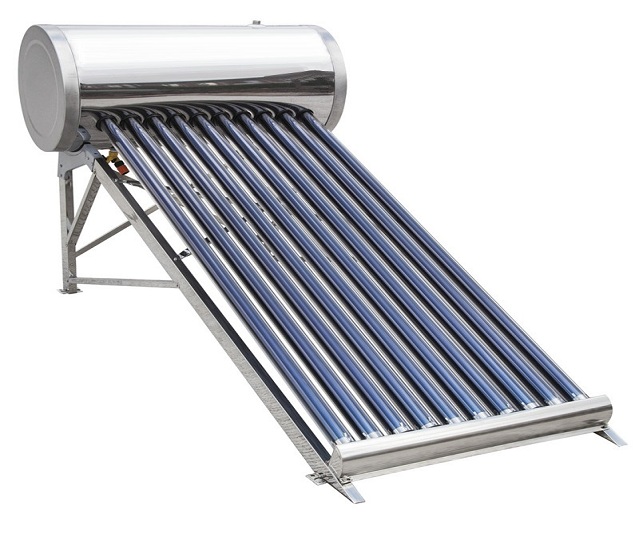

Compact Non-pressure Solar Water Heater
Tech Data:
1. Inner water tank:Stainless Steel, SUS304-2B, SS316L; Thickness, 0.31-0.51MM.
2. Outer water tank:Color Steel or Stainless steel;Thickness,0.40MM.
3. Insulation layer:Polyurethane foam;Thickness, 30-60MM.
4. Frame:Galvanized Steel; Aluminum Alloy; Stainless Steel; Angle, As your requirement.
5. Vacuum tubes:ALN/AIN-SS/CU layer;47-1500 OR 58-1800.
6. Tank capacity:70-400L.
7. Assistant Tank Heating Element, Mg Rod, Reflector and Controller can be provided.
Characteristic:
1. Operated completely automatic if connect with intelligent controller.
2. Installed both on flat and inclined roof, and can be used with a Electric Booster (heating element) as to provide hot water without sunshine.
4. Suitable for camping area, holiday residences.
5. Stable and reliable performance, well wind resistance.
Model:
|
Solar Water Heater
|
Capacity
|
Collector
|
Qty(set)
|
|
Tank
|
Whole System
|
Area
|
20 GP
|
40 HQ
|
|
AP-NP-470-1800/58-15
|
132.3L
|
172.9L
|
1.89 M2
|
50 No.
|
121 No.
|
|
AP-NP-470-1800/58-18
|
148.6L
|
197.3L
|
2.27 M2
|
43 No.
|
105 No.
|
|
AP-NP-470-1800/58-20
|
164.9L
|
219.0L
|
2.52 M2
|
38 No.
|
94 No.
|
|
AP-NP-470-1800/58-24
|
197.5L
|
262.5L
|
3.03 M2
|
33 No.
|
80 No.
|
|
AP-NP-470-1800/58-30
|
246.3L
|
327.5L
|
3.78 M2
|
27 No.
|
66 No.
|
|
